PV STRING FUSE HOLDER WITH FUSE 1000VDC

Item NO.:PV10F-STH**A

Min.Order Quantity: to be discussed
Port:Ningbo/Shanghai
Payment Terms:TT/LC/DP/DA/Paypal/Visa

Inquiry

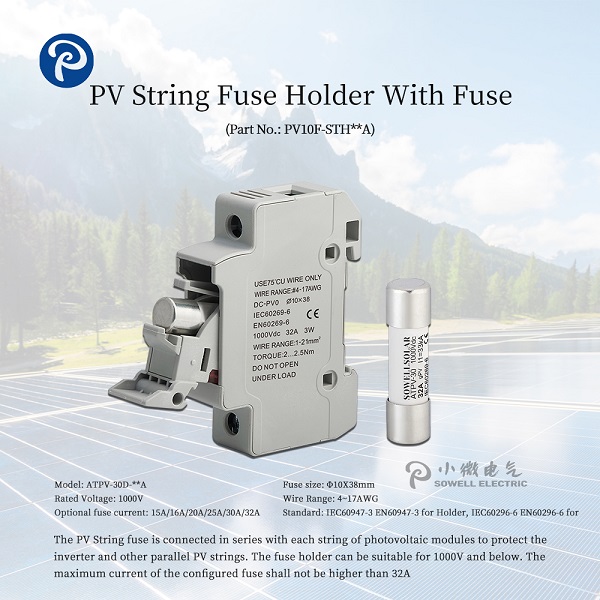

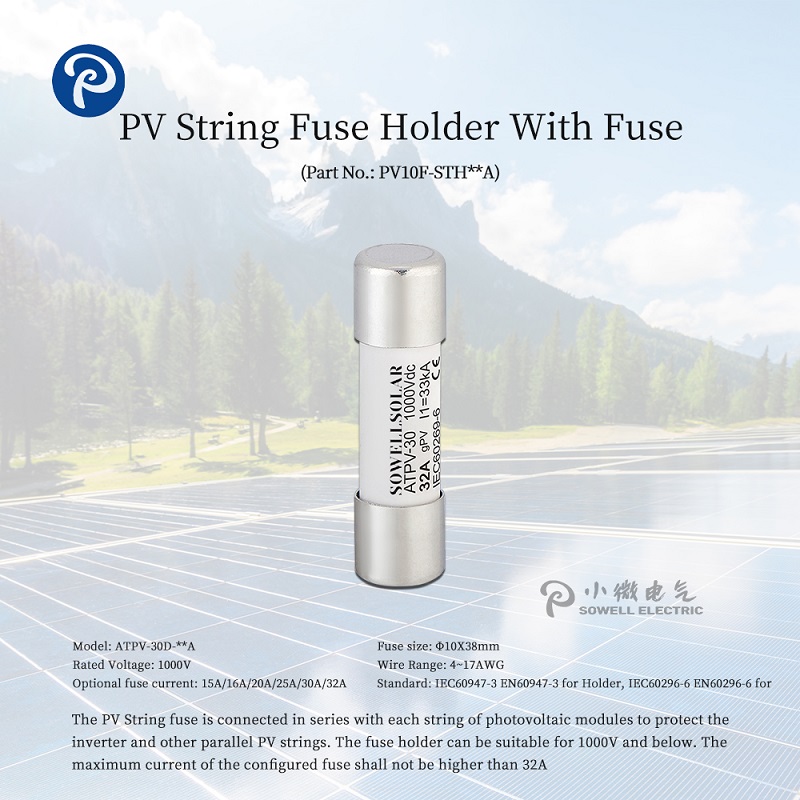

PV STRING FUSE HOLDER WITH FUSE

Part No.: PV10F-STH**A

Model: ATPV-30D-**A

Rated Voltage: 1000V

Optional fuse current: 15A/16A/20A/25A/30A/32A

Fuse size: Φ10X38mm

Wire Range: 4~17AWG

Standard: IEC60947-3 EN60947-3 for Holder, IEC60296-6 EN60296-6 for Fuse

The PV String fuse is connected in series with each string of photovoltaic modules to protect the inverter and other parallel PV strings. The fuse holder can be suitable for 1000V and below. The maximum current of the configured fuse shall not be higher than 32A.




Products line: We have 10 years' experience in production of PV cables and PV connectors. We can produce 200,000 meters of PV cables and 50,000 sets of PV connectors per day. Our standardized pallet is more suitable for global sales. Our factory not only has 6 high-speed cable production lines, but also has electronic irradiation cross-linking equipment, which is the key equipment to control the quality of the cable. Our advanced technology guarantees the production of high-quality cables.

Certificate: Our products are manufactured strictly according to national and international standard, and we take a test on every product before delivered out. We have got TUV, UL and CE certification and all kinds of testing report, if you want please just ask us for it!
