EV Charging Plug for AC TYPE1-TYPE2-1P

Item NO.:SO-SAE-J1772-IEC2-IIb-P

  • Min.Order Quantity: to be discussed
  • Port:Ningbo/Shanghai
  • Payment Terms:TT/LC/DP/DA/Paypal/Visa

Inquiry

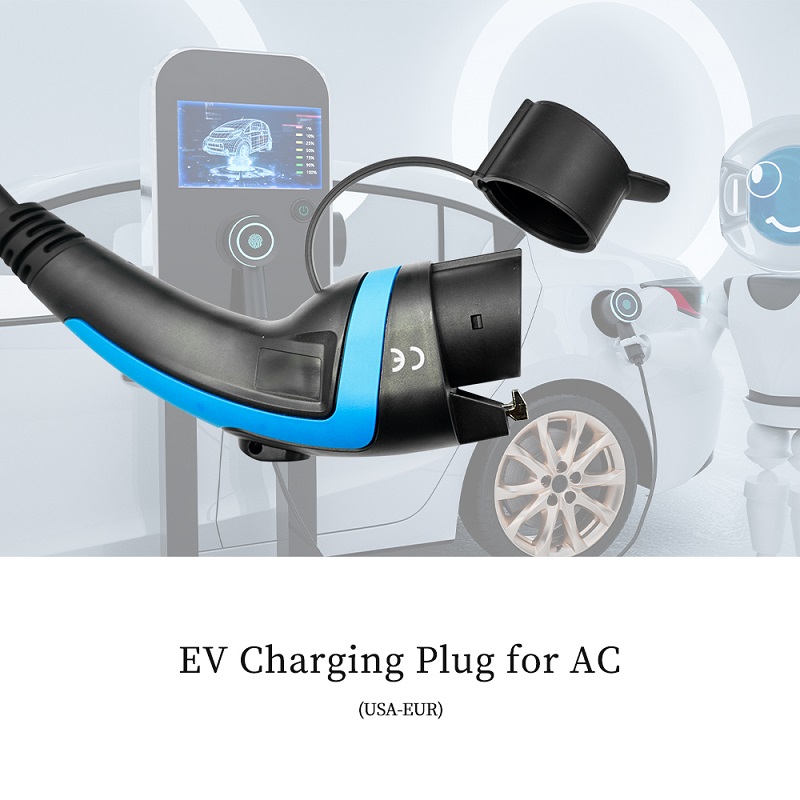

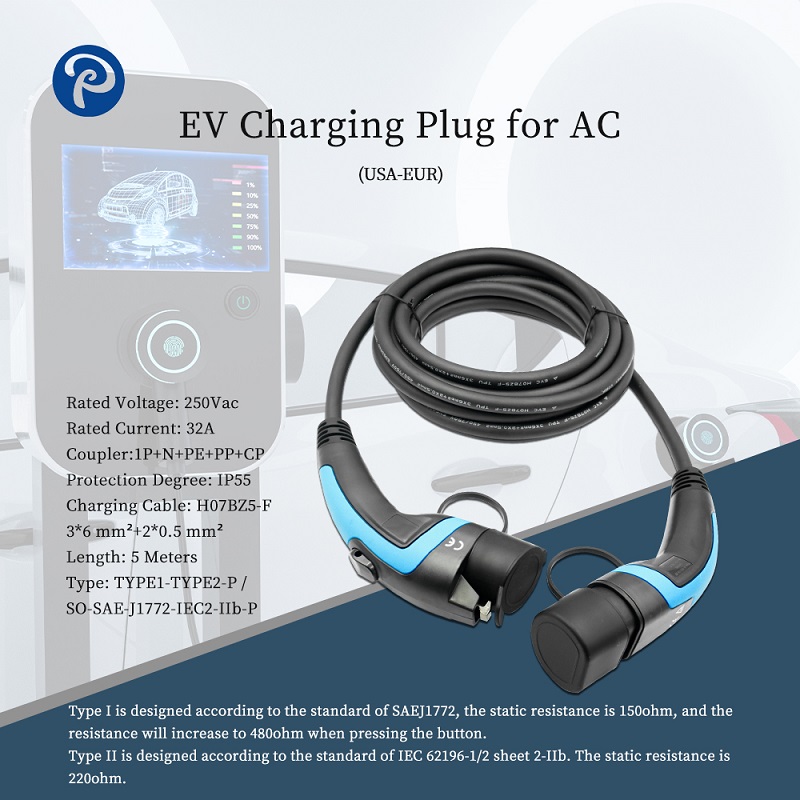

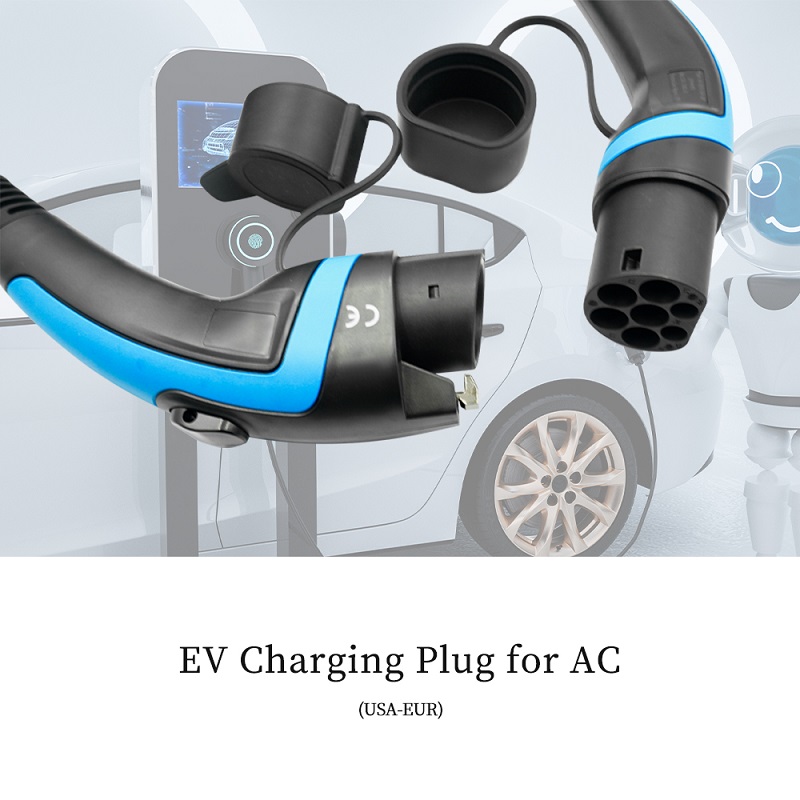

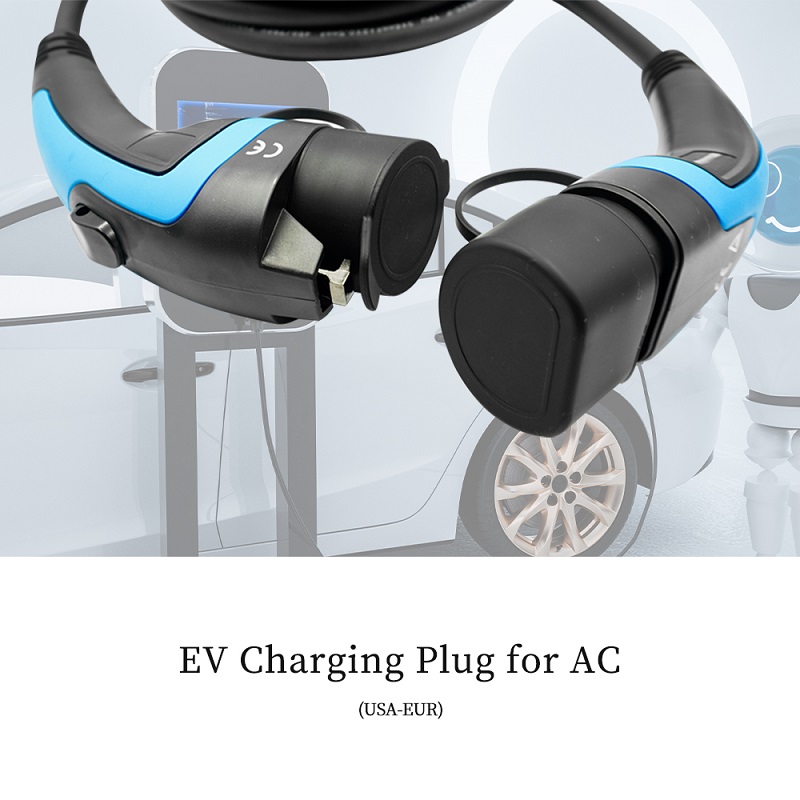

EV Charging Plug for AC (USA-EUR)

Type: TYPE1-TYPE2-P / SO-SAE-J1772-IEC2-IIb-P

Rated Voltage: 250Vac

Rated Current: 32A

Coupler:1P+N+PE+PP+CP

Protection Degree: IP55

Charging Cable: H07BZ5-F 3*6 mm2+2*0.5 mm2

Length: 5 Meters

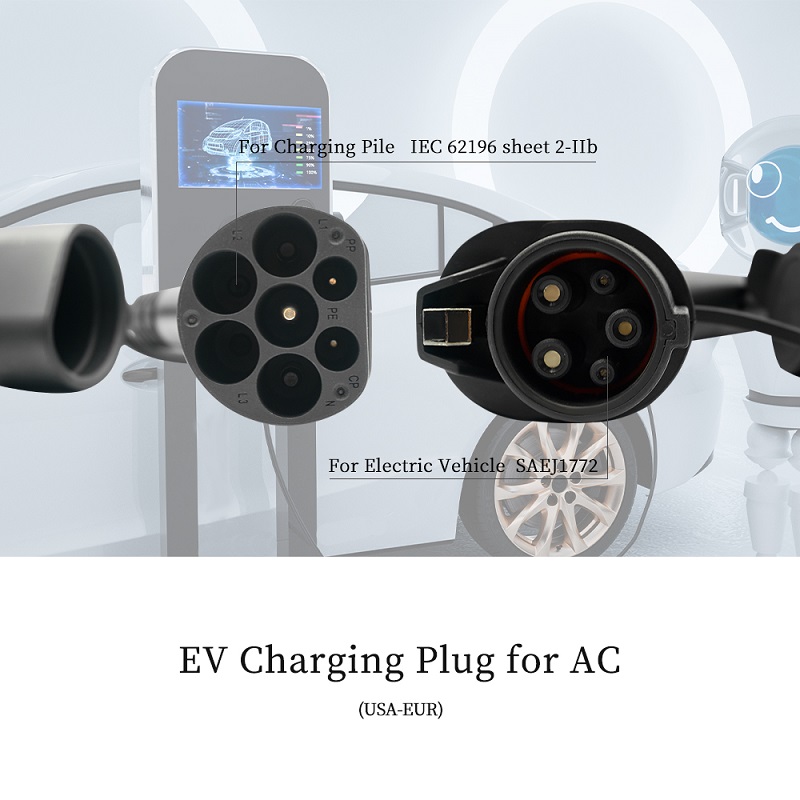

Type I is designed according to the standard of SAEJ1772, the static resistance is 150ohm, and the resistance will increase to 480ohm when pressing the button.

Type II is designed according to the standard of IEC 62196-1/2 sheet 2-IIb. The static resistance is 220ohm.







Products line


We have 10 years' experience in production of PV cables and PV connectors. We can produce 200,000 meters of PV cables and 50,000 sets of PV connectors per day. Our standardized pallet is more suitable for global sales. Our factory not only has 6 high-speed cable production lines, but also has electronic irradiation cross-linking equipment, which is the key equipment to control the quality of the cable. Our advanced technology guarantees the production of high-quality cables.
Certificate


Our products are manufactured strictly according to national and international standard, and we take a test on every product before delivered out. We have got ISO9001, TUV, UL and CE certification and all kinds of testing report, if you want please just ask us for it!
